Managing incorrect MBC handling scenarios on support vessels
Although the recommended handling procedure is to use a spreader bar to install and deploy the MBC off the support vessel, Gall Thomson has received operational feedback over the last 45 years that the spreader bar is not always available offshore or the support vessel may not have the correct lifting capabilities.
This can result in an incorrect Marine Breakaway Coupling handling. See below:
This can result in an incorrect Marine Breakaway Coupling handling. See below:
Managing stress on MBCs in Floating hose applications

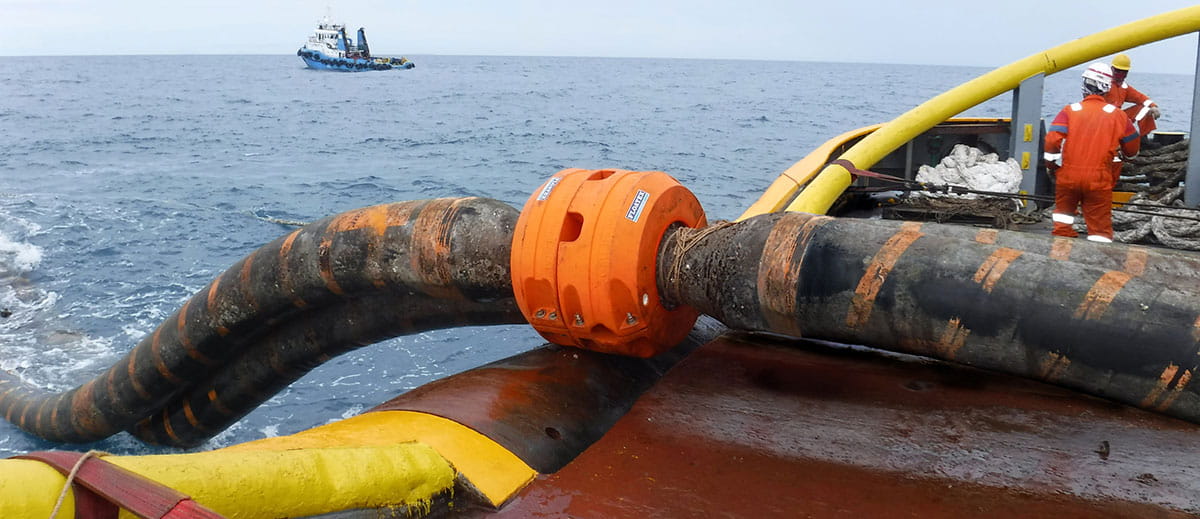

1. Increased robustness of PetalC when handled on vessel stern rollers

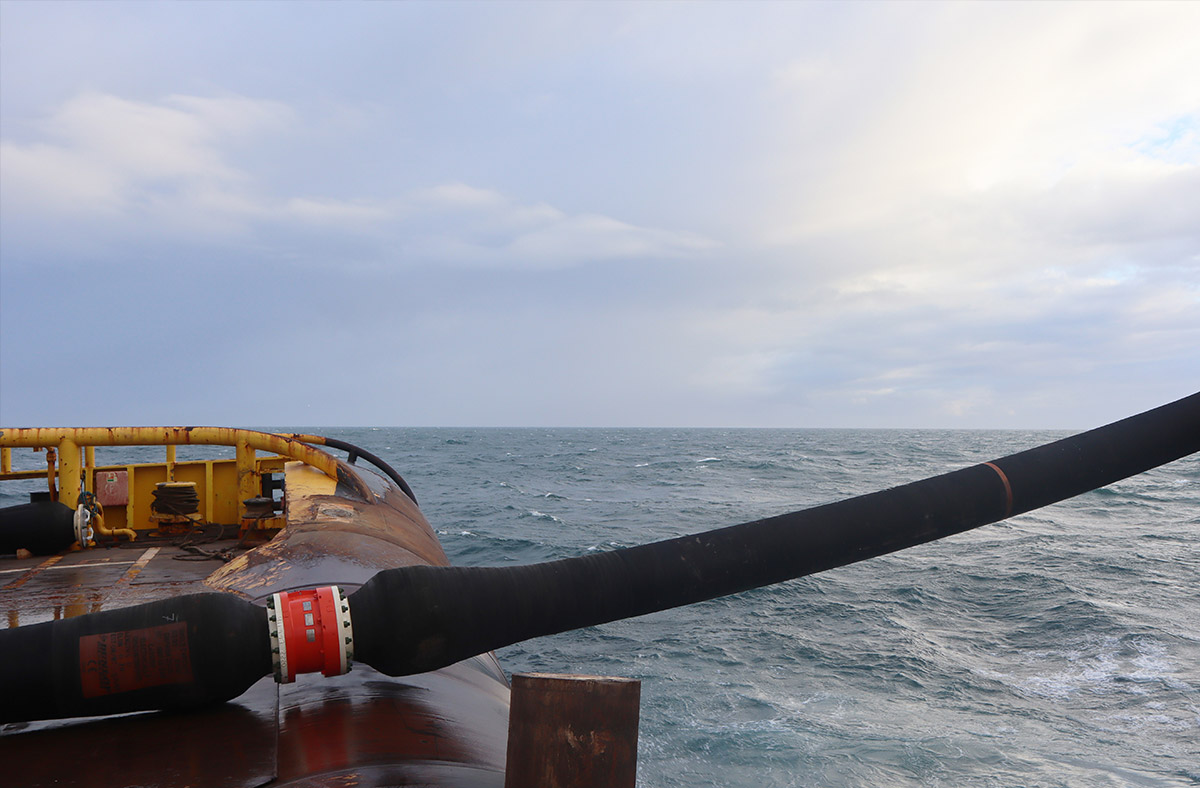

Robust offshore handling can occur with floating hoses on FPSO/CALM/SALM during connection to the tanker manifold, unwrapping hoses from the buoy or hose and MBC inspection on a support vessel.
During these scenarios, the Marine Breakaway Coupling can be subject to high bending moments during friction on the stern roller.
During these scenarios, the Marine Breakaway Coupling can be subject to high bending moments during friction on the stern roller.

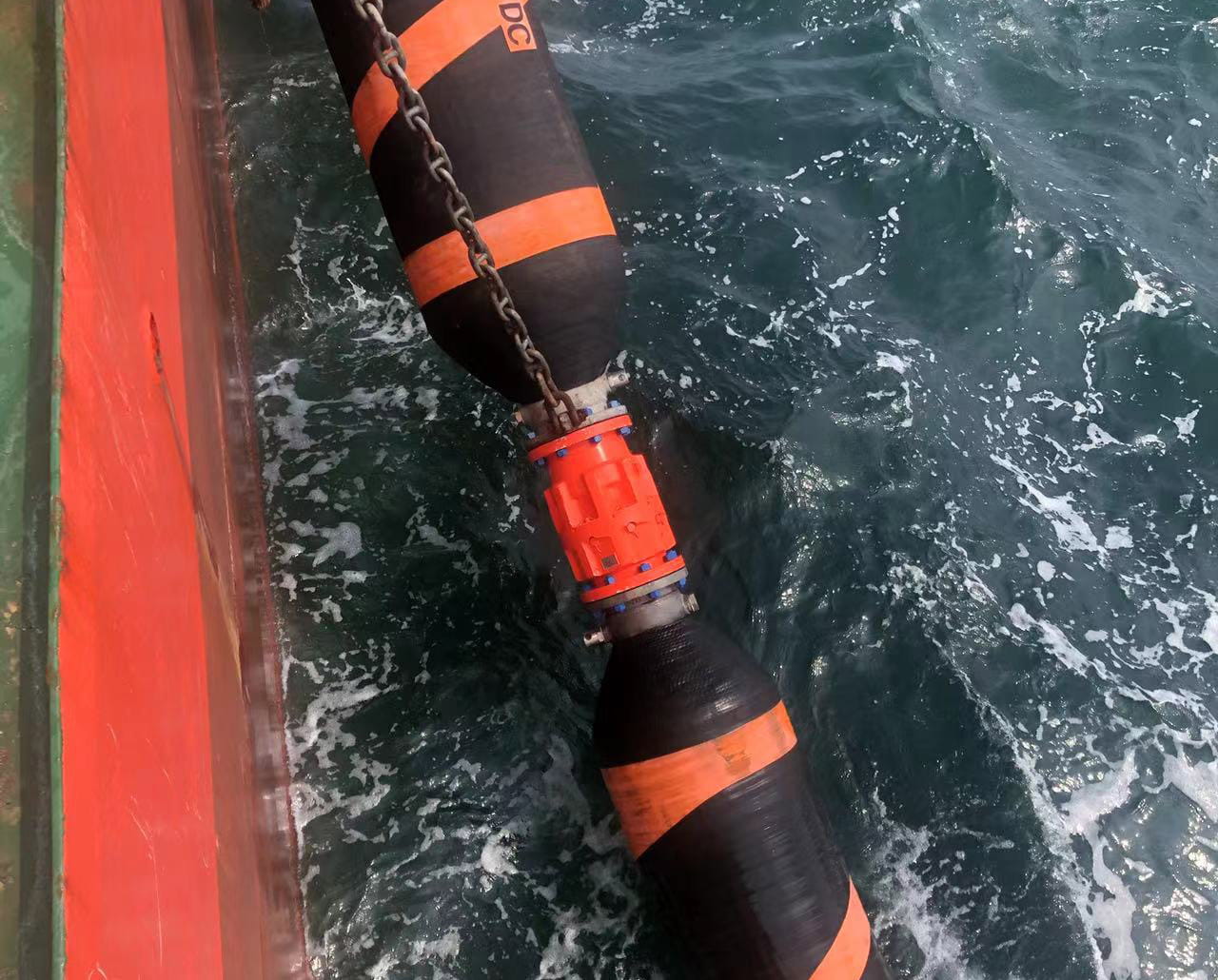

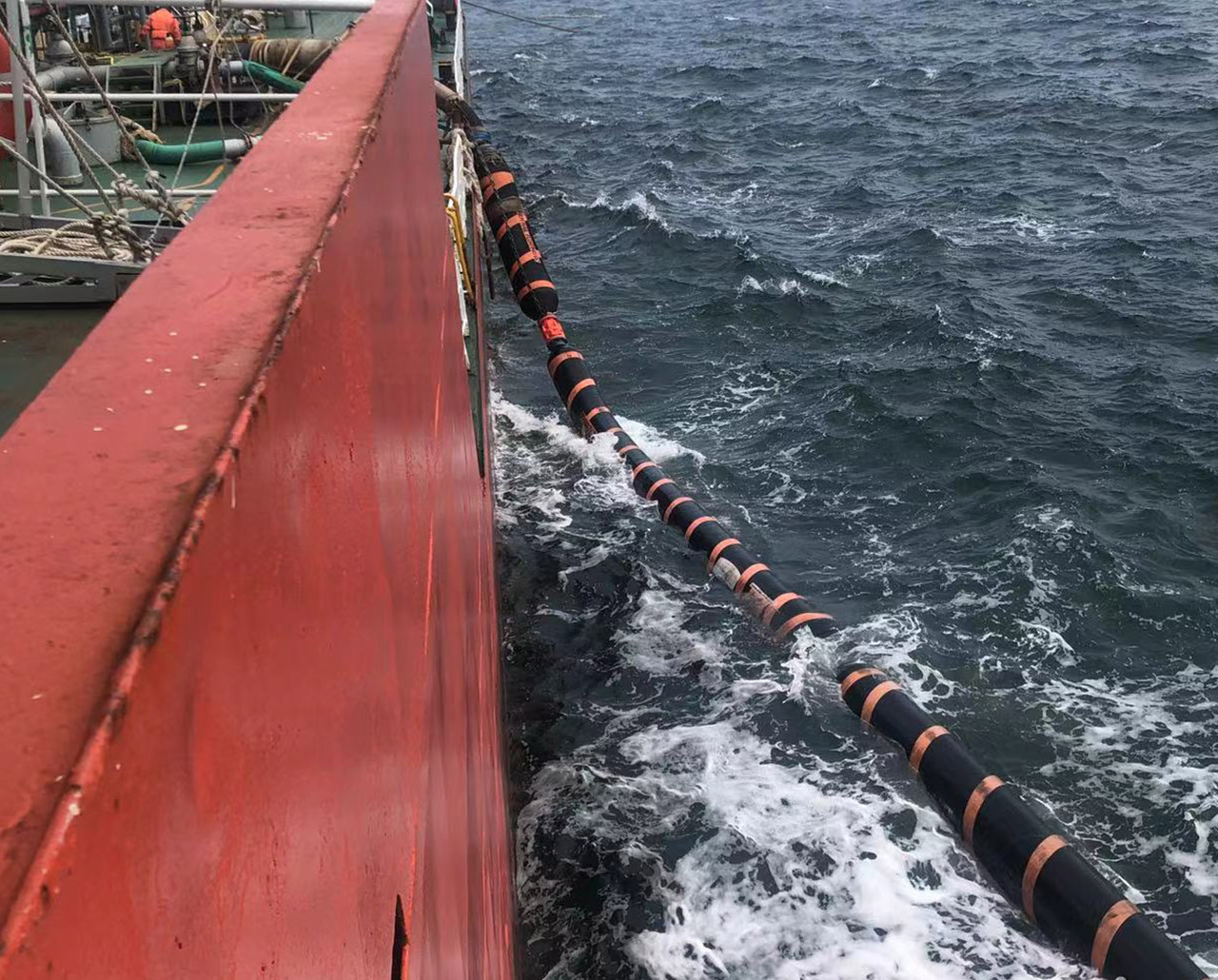

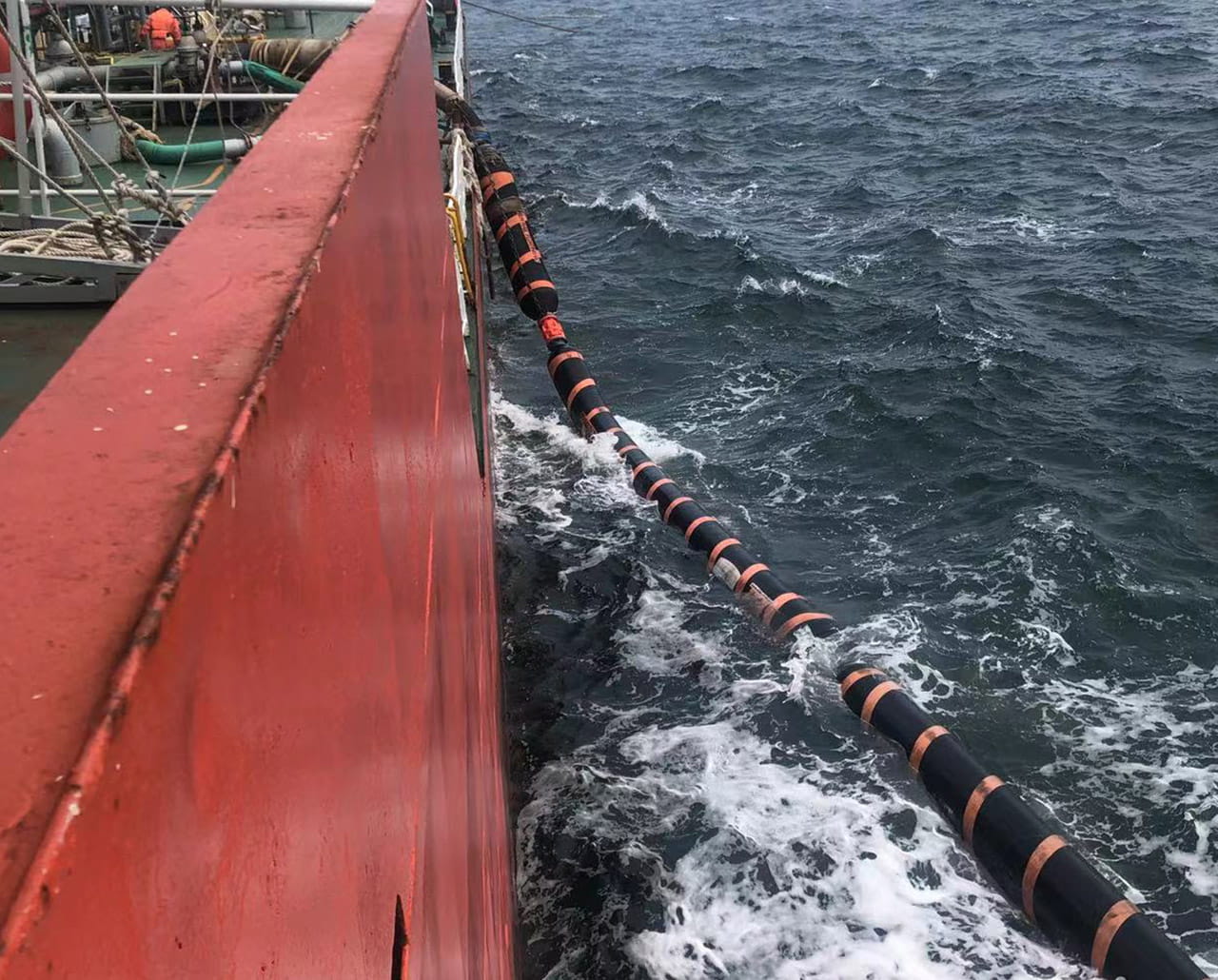

2. The Marine Breakaway Coupling can be subject to high bending moments during hose connection to the tanker manifold
Solution: PetalC
The unique and compact design of the PetalC enables absorption of these higher loads.
The integrated profile of PetalC with the hose nipples enables installed length to be reduced by 60% and up to 30% reduction in axial load on the most critical breakstuds.
The integrated profile of PetalC with the hose nipples enables installed length to be reduced by 60% and up to 30% reduction in axial load on the most critical breakstuds.
PetalC is designed for robust offshore handling environments.
Note that Floats are recommended as per accepted practice for Marine Breakaway Coupling management. See UltraFloat
Note that Floats are recommended as per accepted practice for Marine Breakaway Coupling management. See UltraFloat
Contact the Gall Thomson team for a detailed presentation on PetalC
Configuration and specification options are also available from the Gall Thomson team.
Protected by Worldwide Patents
